Install

How to get the Plugin

  1. Go to the Worldpay Payments Cartridge for B2C Commerce page on Salesforce AppExchange.

  2. Click "Get It Now" to be redirected to our public GitHub repository. Download the Worldpay Payments cartridge source code zip file.

  3. Make sure the "app_storefront_base" and Worldpay Payments cartridge folders appear under the same folder.

  4. Open jobs.xml in the source code zip file. The relative path will be similar to "salesforce-commerce-cloud-master/metadata/jobs.xml".

  5. Replace the context site-id value in jobs.xml with your storefront name, written without spaces (e.g. AccessImplementation). You can find this on your Business Manager home page.

Site ID screenshot
Need help installing? Click here for more guidance

  • Use node version 14 or higher.

  • Run npm install.

  • Run npm run compile:js and then npm run compile:scss.

  • Using the same folder you have saved all the cartridge folders in, create a dw.json file and add the following:

{

               "hostname" : "your-sandbox-hostname.demandware.net",

               "username" : "your username to log in to SFCC",

               "password" : "your password to log in to SFCC",

               "code-version" : "the code version to upload to",

}
  • Upload the code to your environments (for example, using the Prophet Debugger extension for VS Code).

How to configure the Plugin

  1. Log into the Salesforce Business Manager interface and go to Administration → Sites → Manage Sites. Click on "Business Manager", then include int_worldpay_access in the cartridge list.

    Make sure int_worldpay_access is in front of bm_app_storefront_base in the cartridge path of your site (e.g. int_worldpay_access:bm_app_storefront_base).

Business Manager cartridge path screenshot

  1. Include int_worldpay_access in the cartridge list for your storefront by going to Administration → Sites → Manage Sites. Click on your storefront site and the "Settings" tab.

    Ensure int_worldpay_access is in front of app_storefront_base in the cartridge path of your site (e.g. int_worldpay_access:app_storefront_base).

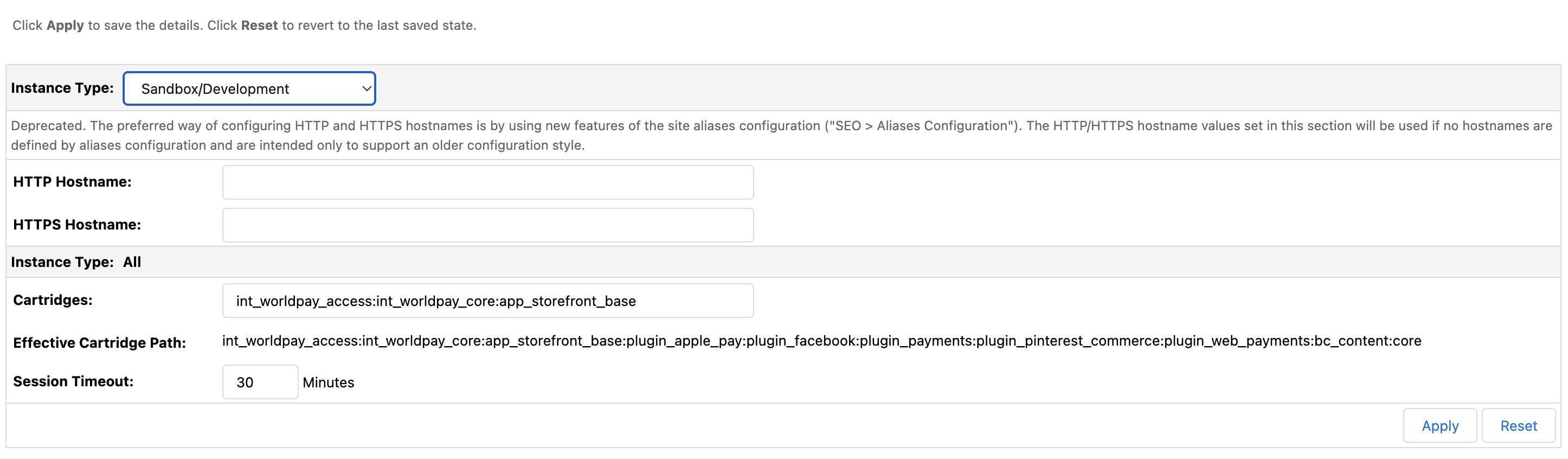

Storefront cartridge path screenshot

  1. Go to Administration → Site Development → Site Import & Export and import the metadata folder as a zip file.

  2. Click on the App Launcher icon in the top left corner and select "Merchant Tools".

  3. Navigate to Merchant Tools → Site Preferences → Site Custom Preferences and click on "AWP-Core" in the "ID" column.

  • Enter the merchant entity that your Worldpay Implementation Manager has given you. The merchant entity used for transactions is the same for Try and Live.
Merchant entity field
Note

You can choose to use two integrations for our Plugin, using our Hosted Payment Pages (HPP) API as well as our Checkout SDK.

Make sure your Worldpay Implementation Manager gives you your Checkout ID to be able to integrate to our Checkout SDK.

The steps above integrate using our HPP API. To integrate to our Checkout SDK alongside this, follow the additional steps below:

  • Enter the Checkout ID provided by your Worldpay Implementation Manager in the "Worldpay Checkout ID" field.
  • Set the "Worldpay Environment" to "try" for testing or "live" for production.
Checkout SDK fields

Supported payment methods

The two integrations for our Plugin offer the supported payment methods and features below.

Hosted Payment Pages API Checkout SDK
Visa
CheckCheck
CheckCheck
Mastercard
CheckCheck
CheckCheck
Amex
CheckCheck
CheckCheck
Google Pay
CheckCheck
Cross markCross mark
Apple Pay
CheckCheck
Cross markCross mark
Guest card and repeat payments
(Customer Initiated Transactions - CITs)
CheckCheck
CheckCheck
Subscriptions and recurring orders
(Merchant Initiated Transactions - MITs)
CheckCheck
CheckCheck

Confirm the Plugin settings

A successful import of the metadata makes the below custom preferences available:

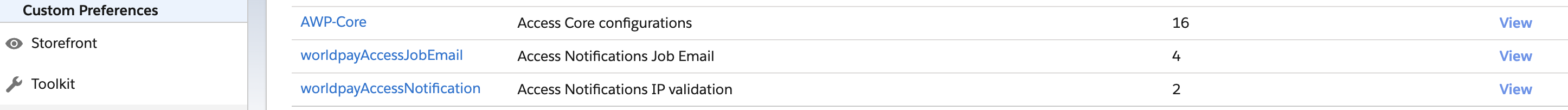

Custom preferences screenshot

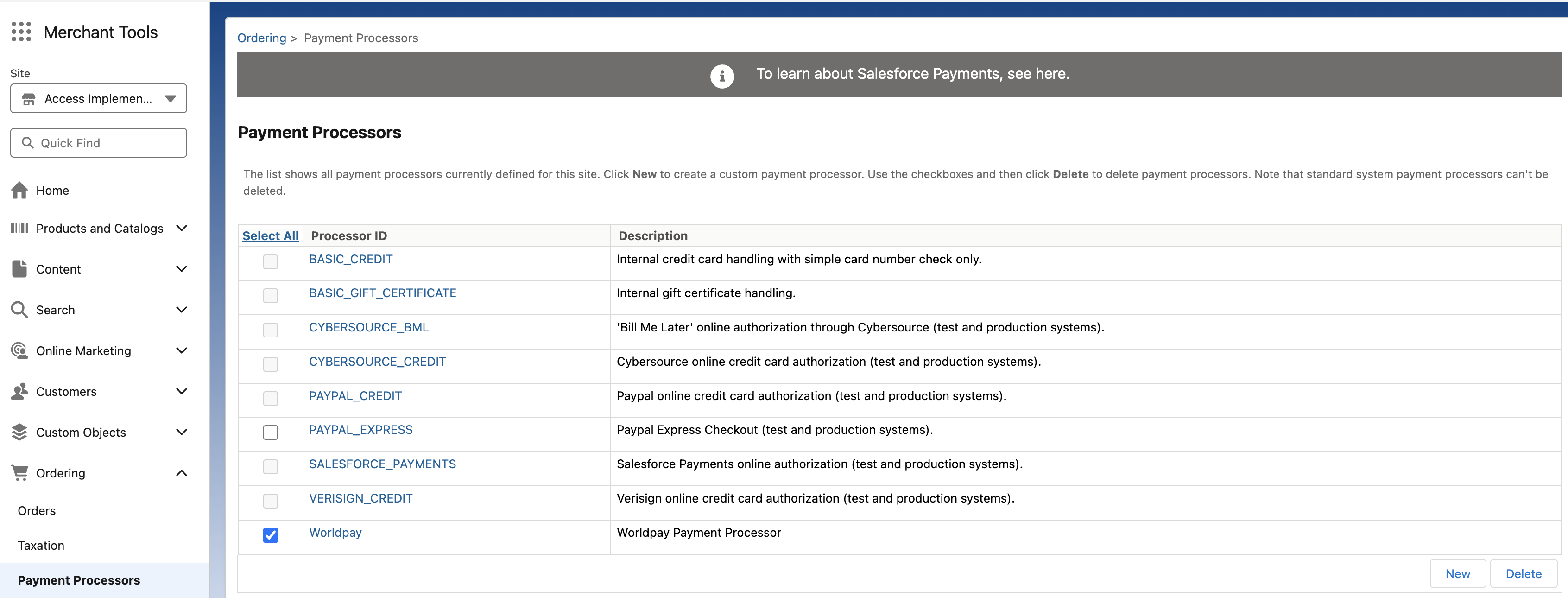

  • Verify that you have imported "Worldpay" as a Payment Processor by going to Merchant Tools → Ordering → Payment Processors.

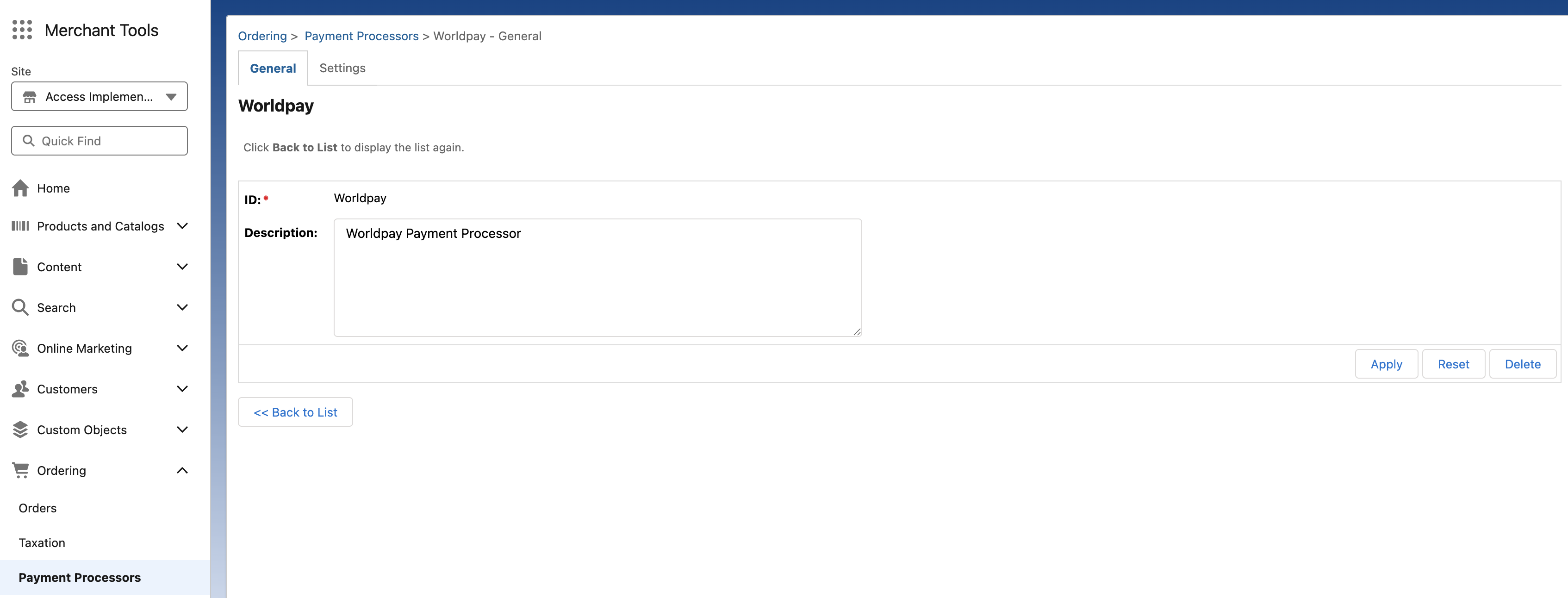

Payment Processors page screenshotApply button to confirm payment processor
  • Verify that you have imported "Worldpay" as an available payment method by going to Merchant Tools → Ordering → Payment Methods.

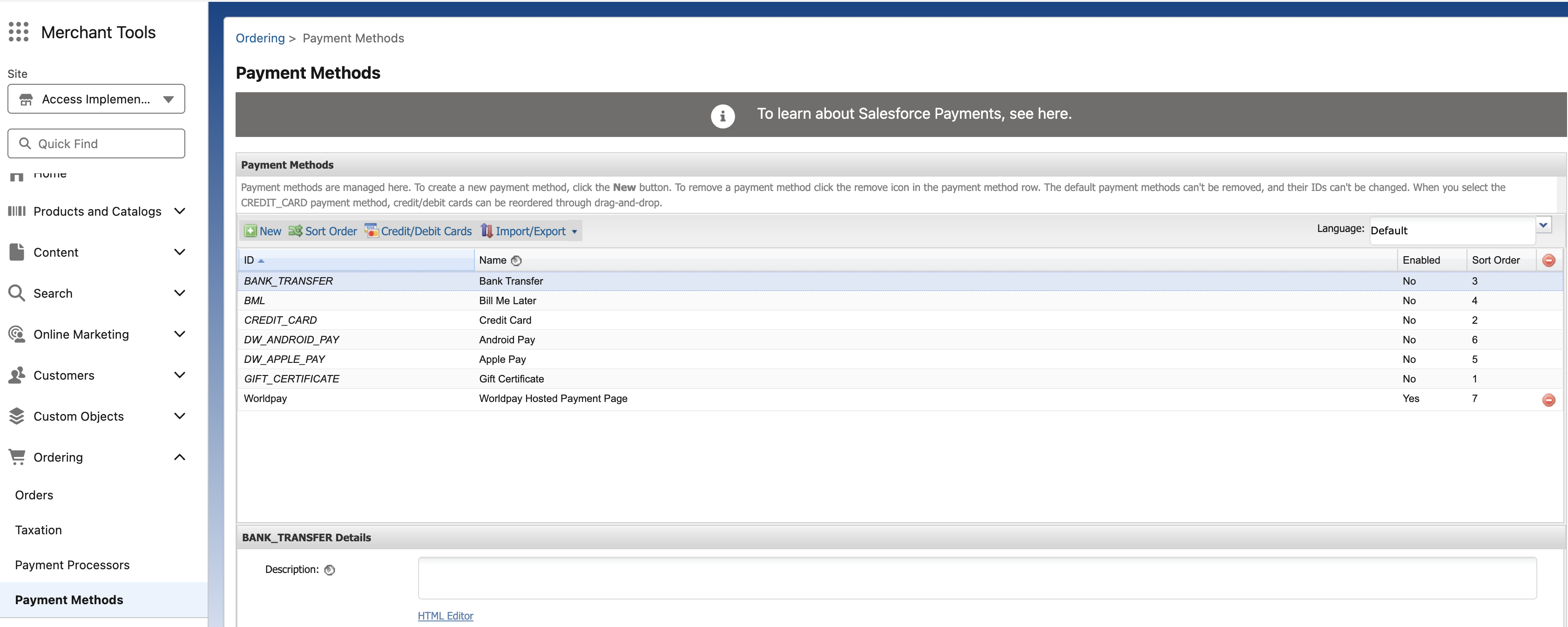

Payment Methods page screenshot

Enable 3DS authentication

You can enable 3DS authentication functionality to verify your customer's identity and meet the Strong Customer Authentication (SCA) requirements under the PSD2 regulation. Learn more about when SCA applies.

  • Go to Merchant Tools → Site Preferences → Site Custom Preferences and click on "AWP-Core".

  • Select "Yes" for the "Enable ThreeDs" field.

Enable ThreeDs field screenshot

Enable subscription functionality

You can allow your customer to make subscription purchases by enabling recurring tokenization within the Salesforce Business Manager interface.

  • Go to Merchant Tools → Site Preferences → Site Custom Preferences and click on "AWP-Core".

  • Select "Yes" for the "allow Recurring Tokenization" field.

Allow Recurring Tokenization field screenshot
